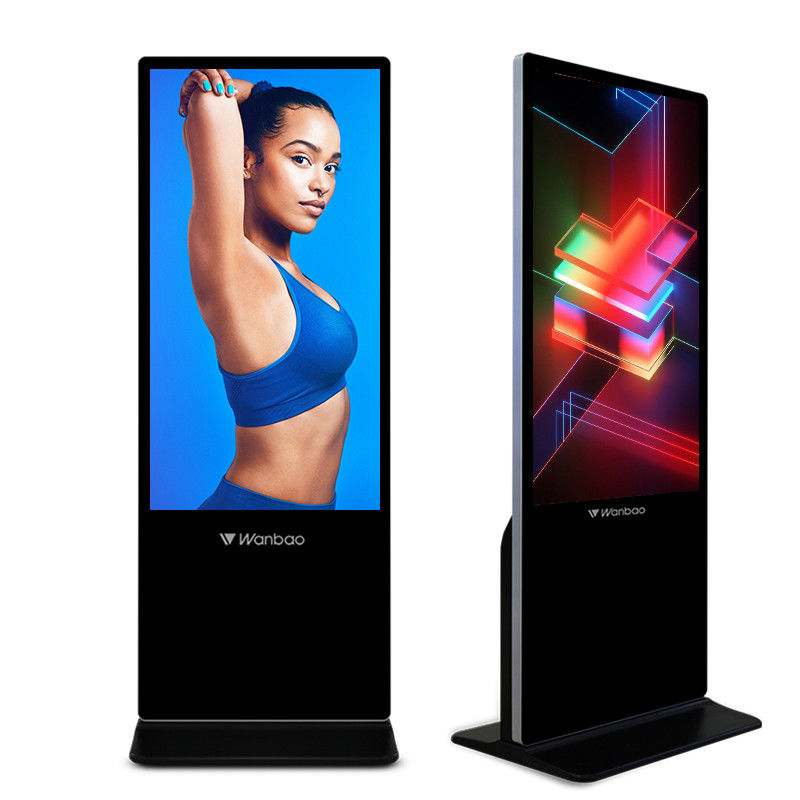

50 Inch Touch Screen Kiosk,Wifi/3G Advertising Display Player Digital Signage Digital Signage Advertising View
Ⅰ. Product Description For Indoor Avertising LED Display
The standing touch Andoid/Windows advertising digital kiosk display is designed with an aluminum alloy frame and a 40mm slim body. It is equipped with a 2k high-definition screen for clearer advertising content. It has the functions of intelligent broadcast, time switch and so on, which makes the advertisement play more worry-free.
For the convenience of managing different numbers of advertising machines, we offer two different models. The first is a stand-alone advertising machine that is suitable for use with a small number of advertising machines in a centralized area. It only needs to use a USB flash drive to change the advertising content. The second is the Internet terminal control version of the advertising machine. It is suitable for large-scale and large-volume use of advertising machines. The advertising machine can be managed using a mobile phone or a network terminal to facilitate the simultaneous replacement of advertising content.
The advertising machine is available in a variety of sizes from 43/48/55/58/65 inches. In addition, we support product customization, such as upgrade configuration, custom logo, design and so on. Everything is only for a better experience for you.
Ⅱ. Features
1. Ultra-thin body design
2. All-aluminum alloy panel structure, anodized surface technology, simple and stylish appearance
3. Self-developed 10-point infrared touch technology
4. Equipped with a powerful and easy-to-use information distribution system to remotely monitor device status (optional)
5. Independent modular structure design, compatible with Android platform
Ⅲ. Advertising Display Function
1. Integrated single advertising system, embedded with HD decoder chip,
2. support playing HD video, up to 1080p.
3. Support to rotate video program.
4. Support set the on/off automatically(up to 5 time intervals).
5. Support to split screen into several smaller window, playing different advertisement.
6. Support to continue displaying when suffered from power failure.
7. Support to display station caption on the corner of screen.
8. Support to copy and delete media files on USB storage.
9. Support to generate working records automatically.
10. Support to set different sound volume during different time period.
11. Support and play med on USB memory, plug-and-play, easy to change advertisements.
12. Support most video and audio formats: MPEG,MPG-1,MPG-2,MPG-4,AVI,MP4,DIV,TS,TRP,MKV,WMV,RM,RMVB etc.
13. Support various kinds of play mode: single cycle, list cycle and all repeating.
14. Support picture move-transition, scaling-transition, slide-transition.
15. Support stereo sound system as well as mono sound.
16. Support multiple OSD language, Chinese, English, French, Spanish etc.
17. Support scrolling marquee displaying.
18. Support perpetual calendar displaying.
Ⅳ. Specification
| Advertising Player Specification |
| Features |
1. Ultra-thin body design
2. All aluminum alloy panel structure, anodized surface technology, simple and fashionable appearance
3. Self-developed 10-point infrared touch technology
4. Equipped with powerful and easy-to-use information release system to realize remote monitoring equipment status (optional)
5. Independent modular structure design, compatible with Android platform |
| Model |
Model No. |
LED500G319 |
| Type |
43/ 50 /55 / 65inch Advertising Player |
| Operating System Info. |
CPU |
RK3188 |
Allwinner A64 |
| RAM |
1GB
|
| Memory |
8GB
|
Touch function
(Optional) |
Touch Technology |
Infrared touch |
N/A |
| Input way |
finger touch,or any opaque object |
| Touch life times |
Over 60,000,000 times |
| Touch response speed |
6~8ms |
| Display Panel Info. |
Display Type |
LED |
| Display Colors |
10Bit, 16.7M |
| Resolution |
1920 * 1080 UHD |
| Ratio of display |
16:9 |
| Tempered glass |
Glass thicknesse |
4mm tempered glass |
| Glass transmittance |
95% |
Interface
Info. |
DC input |
x1,(12V; 3.0A) |
| HDMI Input/Output |
x1 |
| RJ45 |
x1 |
| USB OTG |
x1 |
| USB HOST |
x1 |
| TF Card |
x1,(Max. support extend : 64GB |
| Other Info. |
USB maximum load current |
500mA |
| Working hours |
7x48 |
| Working voltage |
50-60HZ 100-250V |
| Working temperature |
0℃～40℃ |
| Storage temperature |
- 10 ℃ to 50 ℃, recommend 5 ℃ ~ 45 ℃ |
| Working humidity environment |
10％～90％,There is no lon |
| Power of speaker |
8Ω 12.5W*2 |
| Frame material |
Alloy |
| Accessories |
Remote control |
x1 |
| Key |
x1 |
| Antenna |
x1(Standard comes with High-end and Middle-end model) |
| User Manual |
x1 |
| Packaing |
Size of product(mm) |
1800x620x80 |
| Size of package(mm) |
1835x740x167 |
| N.W.(KGS) |
47 |
| G.W.(KGS) |
50
|
|
Model Name
|
Digital Signage
|
|
|
|
Size
|
L760 *W400*H1909 mm (for model 43")
|
|
Colour
|
Black /White
|
|
OS support
|
WIN7/10(trial version),Android 6.0 and higher version
|
|
|
|
Max Resolution
|
1920*1080
|
Aspect Ratio
|
16:9
|
|
Brightness
|
450cd/m2
|
Panel Life
|
50000hours
|
|
Contrast Ratio
|
1100:1
|
Response time
|
12ms
|
|
Visual angle
|
178°/178°
|
Display Colors
|
16:7M
|
|
|
|
Type
|
No touch
|
|
|
|
Material
|
SPCC
|
Surface
|
Poweder coated
|
|
|
|
Working temperature
|
0°C~40°C
|
Working humidity
|
20%~80%
|
|
Storage temperature
|
-20°C~60°C
|
Storage humidity
|
10%~90%
|
|
Application
|
Indoor
|
Ⅴ. Application Scenario
Widely use on Airport, station, catering industry, entertainment industry, medical institution, golf course, supermarket,
exhibition, stadium and gymnasium, financial industry, organ and enterprise, building adverting and billboard advertising, subway,
hotel, rail way station, bus station, lift, bank, commercial center, wedding photograph, large exhibition, mobile show,
chain-store and etc.
ⅤI.Company profile
Enterprise
Guangdong Deyuan Technology Co., Ltd. is a modern high-tech enterprise specializing in the research and development, production
and sales of intelligent display products, which was established in Guangzhou in July 2006. And currently owns the proprietary
industrial park in Guangzhou Huadu Automobile City. It covers an area of 30 acres, with a construction area about 40,000 square
meters. There are 3 subsidiary companies: Guangzhou JAV Electric Appliance Co., Ltd., Guangzhou Ruizhi Intelligent Technology Co.,
Ltd., and Guangzhou Xianyou Intelligent Co., Ltd., . The company owns brands JAV, Wanbao and AIWA. JAV is the company's own brand
and won “Guangdong Famous Brand”. At present, it is a top brand merchant of JD, Tmall and Suning, with total sales volume of more
than USD50 million annually. In the past, Aiwa was a brand as the same reputation as Sony. Now it is still a very famous
international brand in the eyes of the older generation of consumers. Now authorize us to produce TV and as global sales. Wanbao
is a brand of Guangzhou Wanbao Group Co., Ltd., which is a state-owned enterprise of China. The company has eight production bases
across the country, and has established nine Sino-foreign joint ventures. It is a close partner of Panasonic, Hitachi, Mitsui, and
Electrolux. In 2019, Wanbao was the China's top 500 manufacturing companies ranked 214. Wanbao's brand and products have won many
honorary titles such as “China Well-known Trademark” and “China Famous Brand”. In 2018, Deyuan Technology cooperated with Wanbao
Group and became the commercial display production base and global sales center of Wanbao. With Wanbao brand, Deyuan technology
mainly undertakes project orders from domestic governments, schools and other projects. We also promote the brand into foreign
markets and accept OEM/ODM projects for foreign customers. Our company pays close attention to product quality and system
construction, and has successively obtained certifications as ISO9001, ISO14001, 3C, ROHS, CE, and CB. We also got numerous patent
certificates, copyright certificates, and software copyright certificates in the field of smart commercial display products. At
present, Deyuan Technology is serving more than 100,000 customers in China, with after-sales service outlets all over the country.
Thanks to the high quality, our products are also popular in overseas markets.
ⅤII. FAQ
Q1. What kind of certificate do you have?
A: ISO 9001, CE, RHos
Q2. Does your digital signage display include the supply of both hardware & software?
A: Our quotation is only including the price of hardware. Please advise us what kind of software you need and then we will feedback to you accordingly.
Q3. Would it be possible to order a sample of products?
A: Yes, definitely no problem to order one sample at first before bulk order.
Q4. Is it possible to have our logo printed on top of it? Thanks
A: Yes, it is no problem.
Please offer us the logo picture and offer us international Pan-tone color code for the logo color
Q5 . What's the minimum order quantity?
A: MOQ for digital signage and interactive kiosk is 1 unit
Q6 . Can we custom the item according to our project?
A: Yes, our strong R& D center will support you about the custom service.
Q7 . Are you a manufacturer?
A: Yes, we have our own factory with advanced facilities.
