Interactive-flatpanel | Floor standing advertising display | Commercial display
 |
| Place of Origin: | Guangzhou |
| Brand Name: | Wanbao/OEM brand/Neutral |
| Certification: | CE, ISO9001,ROHS,CCC,FCC |
| Model Number: | LED86H6A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 1176 |
| Packaging Details: | export carton |
| Delivery Time: | 15 working days |
| Payment Terms: | Western Union, MoneyGram, T/T, L/C |
| Supply Ability: | 8000 sets per month |
| Type: | Whiteboard | Folded: | NO |
|---|---|---|---|
| Resolution: | 3840*2160 (4K) | Material: | Aluminum Alloy Frame |
| Warranty: | 1 Year | Size: | 55/65/75/86/100/105/110 Inch |
| Brightness: | 400cd/2 | Response Time: | 6ms |
| High Light: | 86 Inch Smart Interactive Whiteboard,University Smart Interactive Whiteboard |
||

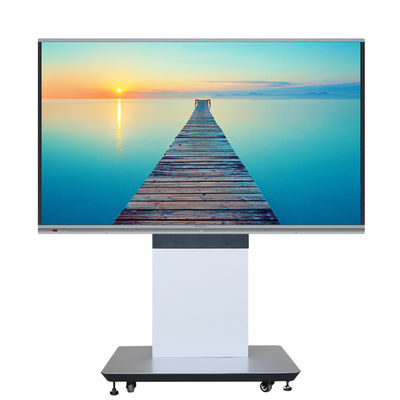

86 Inch Smart Board 4K LCD Interactive Whiteboard 20 Points Cheap For University
Multimedia teaching/conference all-in-one adopts advanced Multi touch interactive technology,
It is a Multi function man-machine interactive terminal which uses the screen touch operation,
Integrated interactive whiteboard, Tablet, Audio, computer, Internet multimedia playback and other functions.
1. All in one:computer, whiteboard, projector, TV, speaker, advertising machine,multifunction in one equipment.
2. Support 20 points IR touch:Adopt super sensitive touch panel, increase the touch accuracy, and it can stand more than 35 million time secure touch without any uncontrolled space. Touch easily and control perfectly.
3. 3840*2160 UHD resolution: Ultra high definition LED screen, A+ grade imported original panel, AWB TECH, suit for universal application scenarios.
4. 4mm explosion-proof tempered glass: 4mm Ultra-Thin rating 7 glass can protect screen effectively.
5. Infrared touch screen with aluminum plate, small heat, fast heat dissipation, which can effectively extend the life of panel.
6. Dual core processor : windows and android dual system built-in design. Both systems can achieve whiteboard writing and multimedia playing.
7. Fast response speed: 0.8ms fluent writing and demonstration. More convenient courseware management. Accurate, fast touch, no delay.
8. Intelligent operation: Freely writing, annotate and screen shot. Automatically recognize input channel. Intelligent eye protection. Light sensor with automatic brightness control. Energy save & intelligent awake.
9. Intelligent writing & Touch control: the writing function interface can realize the functions of writing, magnifying, shrinking, erasing, dragging, and the like.
10. Screen-mirroring with android phone, iphone, ipad, computer,etc.
11. Supporting connecting WIFI and sharing hot spots at the same time. Comes with double WIFI, common module and dual frequency. 5G signal high-speed access, while sharing hot spots.
| Screen size | 55’’/65’’/75’’/86’’/98’’ |
| CPU | intel i3(intel i5/i7 option) |
| RAM | (8GB/16GB option) |
| Memory | (128GB SSD/256GB SSD option) |
| Windows OS | Windows 10 without license( license option) |
| (Android OS option) | 848 G51MP |
| Android | Android 8.0 3GB+32GB |
| Touch Technology | Infrared touch |
| Touch points | 20 points |
| Input way | finger touch,pen,or any opaque object |
| Touch life times | Over 60,000,000 times |
| Touch response speed | 8ms |
| Display Type | DLED |
| Resolution | (3840*2160 UHD option) |
| Brightness | 350(cd/m2) |
| Ratio of display | 16:09 |
| Best viewing angle | up:73 down:73； left:73 right:73 |
| Max. viewing angle | 178° |
| Contrast ratio | 5000:1TYP |
| Glass type | 4mm tempered glass |
| Glass transmittance | 95% |
| Front Buttons: | |
| PC power button*1;Power on/off*1;USB*2 | |
| Front ports: | |
| HDMI*1;Touch out*1;MV in*1 | |

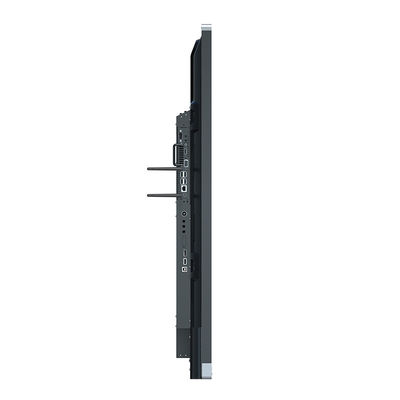

| Back ports(Ⅱ):(Exact ports info. depends on the model of OPS PC) | |
| DC(9V-12V)*1;MIC*1;AUDIO*1;LAN*1;USB3.0*2;USB2.0*2;HDMI*1;VGA*1 | |
| Power of display | 200W |
| Colors | 1.07B(10bit) |
| Life time | 80,000h |
| Working voltage | 60-120HZ 100-250V |
| Standby power | ≤0.5W |
| Working temperature | 0℃~40℃ |
| Storage temperature | -20℃~60℃ |
| Working humidity | 10%~90%RH |
| Power of speaker | 8Ω10W*2 |
| Frame material | Alloy |
| Accessories | Wall bracket/movable floor stand/pen/remote control/WIFI antenna |
| Warranty | 12 months |
| Package | 3cm thickness Honeycomb box |
| SIZE | Display size (inch/mm) | Overall size/Weight W*D*H(mm)/kg | Packing size/Weight W*D*H(mm)/kg | QTY of containers(pcs) 20'GP/40'GP/40'HQ |
| 55" | 1210*680 | 1262*782*85/26 | 1428*220*878/36 | 102/236/254 |
| 65" | 1428*804 | 1489*906*89/37.5 | 1656*204*1050/49.8 | 79/183/197 |
| 75" | 1650*928 | 1710*1029*89/52.3 | 1886*210*1196/66.2 | 59/137/148 |
| 86" | 1895*1066 | 1957*1169*90/69.8 | 2134*210*1334/89.4 | 53/123/133 |
| 98" | 2159*1214 | 2245*1323*90/102 | 2483*376*1493/136 | 20/47/50 |
