Interactive-flatpanel | Floor standing advertising display | Commercial display
 |
| Place of Origin: | guangzhou |
| Brand Name: | wanbao |
| Certification: | CE/CCC/FCC/ROHS/ISO9001 |
| Model Number: | LED65H258 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD 700 |
| Packaging Details: | kraft carton |
| Supply Ability: | 5000PCS PER MONTH |
| Operating System: | Android 7.0+WIN10(Optional) | Touch Points: | 20 Points Touch |
|---|---|---|---|
| Resolution: | 3840*2160 (4K) | Material: | Aluminum Alloy Frame |
| High Light: | wall mounted interactive whiteboard,smart interactive panel |
||

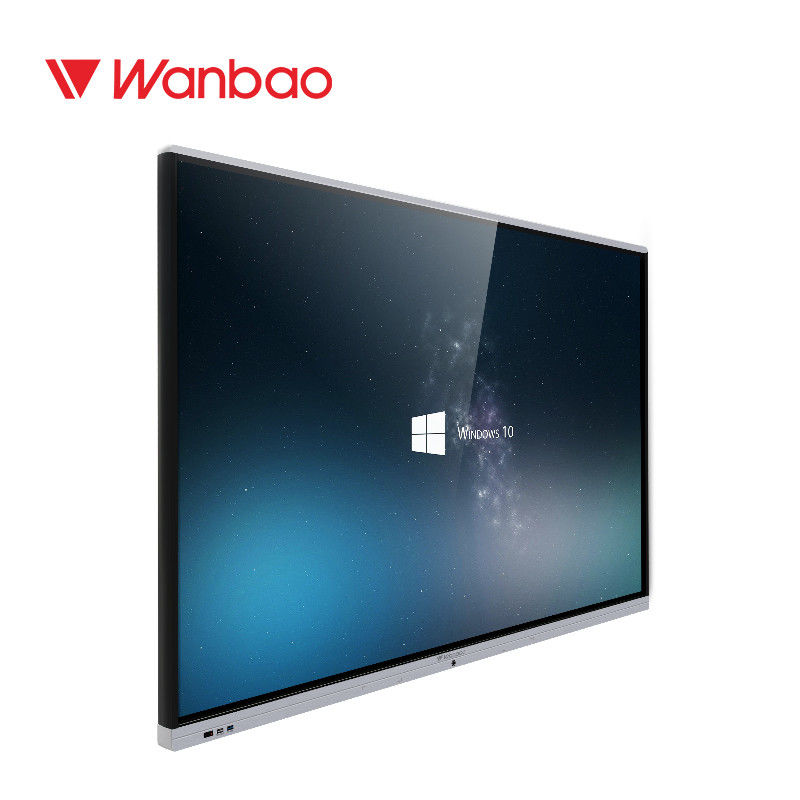

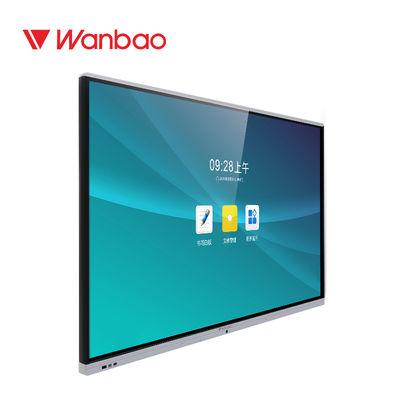

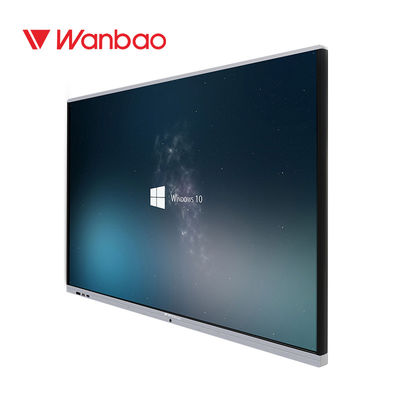

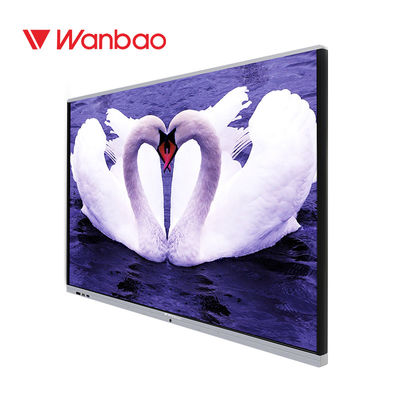

Touch screen whiteboard 65'' WIN 10/Android dual system interactive touch sreen pc smart board with wall mounted/floor standing
It adopts 4MM thick Mohs grade 7 explosion-proof tempered glass, which is strong, wear-resistant, scratch-resistant, anti-collision and waterproof, and protects the LCD screen in all directions.
Ⅳ. Specification
| Screen size | 55’/65’’’/75’/86’’ |
| CPU | intel i3; (intel i5/i7 option) |
| RAM | 4GB RAM; (8GB/16GB option) |
| Memory | 120GB SSD;(240GB SSD/1TB HDD option) |
| Windows OS | Windows 7/10 without license( license option) |
| (Android OS option) | MSD 648 Quad core |
| Android | Android 6.0 |
| Touch Technology | Infrared touch |
| Touch points | 10/20 points |
| Input way | finger touch,pen,or any opaque object |
| Touch life times | Over 60,000,000 times |
| Touch response speed | 8ms |
| Display Type | LED |
| Resolution | (3840*2160 UHD option) |
| Brightness | 400(cd/m2) |
| Ratio of display | 16:09 |
| Best viewing angle | up:89 down:89； left:89 right:89 |
| Max. viewing angle | 178° |
| Contrast ratio | 5000:1TYP |
| Glass type | 4mm tempered glass |
| Glass transmittance | 95% |
| Front Buttons: | |
| PC power button*1;Volume up*1;Volume down *1;Memu*1;Power on/off*1 | |
| Front ports: | |
| HDMI*1;Touch out*1;MV in*1;USB2.0*3 | |
| Back ports(Ⅰ): | |
| USB2.0 type B*1;USB2.0*2;HDMI*1;VGA*1 | |
| Back ports(Ⅱ):(Exact ports info. depends on the model of OPS PC) | |
| DC(9V-12V)*1;MIC*1;AUDIO*1;LAN*1;USB3.0*2;USB2.0*2;HDMI*1;VGA*1 | |
| Power of display | 178W |
| Colors | 16.7M |
| Life time | 60,000h |
| Working voltage | 50-60HZ 100-250V |
| Standby power | 3W |
| Working temperature | 0~45℃ |
| Storage temperature | -20℃~60℃ |
| Working humidity | 5%-90% |
| Power of speaker | 8Ω10W*2 |
| Frame material | Alloy |
| Accessories | Wall bracket/movable floor stand/pen/remote control/WIFI antenna |
| Warranty | 12 months |
| Package | 3cm thickness Honeycomb box |
1. All in one:computer, whiteboard, projector, TV, speaker, advertising machine,multifunction in one equipment.
2. 20 points touch option):Adopt super sensitive touch panel, increase the touch accuracy, and it can stand more than 35 million time secure touch without any uncontrolled space. Touch easily and control perfectly.
3. 3840*2160 UHD resolution: high definition LED screen, LG A+ grade 1.07B colour original panel, AWB TECH, suit for universal application scenarios.
4. 4mm explosion-proof tempered glass: 4mm Ultra-Thin rating 7 glass can protect screen effectively.
5. Infrared touch screen with aluminum plate, small heat, fast heat dissipation, which can effectively extend the life of panel.
6. Dual core processor : windows and android dual system built-in design. Both systems can achieve whiteboard writing and multimedia playing.
7. Fast response speed: 0.8ms fluent writing and demonstration. More convenient courseware management. Accurate, fast touch, no delay.
8. Intelligent operation: Freely write, annotate and screen shot. Automatically recognize input channel. Intelligent eye protection. Light sensor with automatic brightness control. Energy save & intelligent awake.
9. Intelligent writing & Touch control: the writing function interface can realize the functions of writing, magnifying, shrinking, erasing, dragging, and the like.
10. Screen-mirroring with android phone, iphone, ipad, computer,etc.
11. Supporting connecting WIFI and sharing hot spots at the same time. Comes with double WIFI, common module and dual frequency. 5G signal high-speed access, while sharing hot spots.
