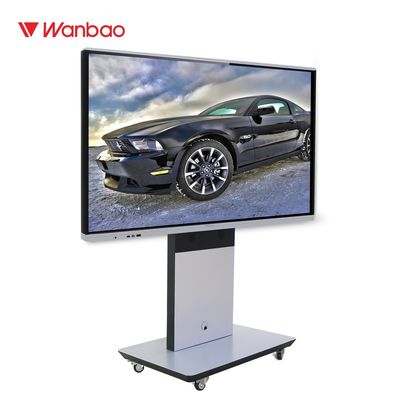

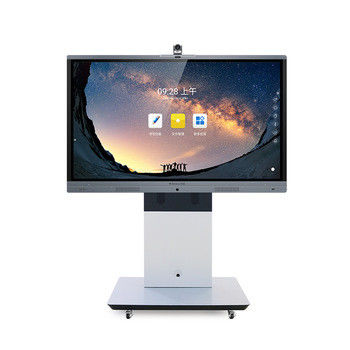

Interactive-flatpanel | Floor standing advertising display | Commercial display
 |
| Place of Origin: | guangzhou |
| Brand Name: | wanbao |
| Certification: | CE , ISO9001 |
| Model Number: | LED86H248 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | 1602 |
| Packaging Details: | export carton |
| Type: | Whiteboard | Folded: | NO |
|---|---|---|---|
| Resolution: | 3840*2160 (4K) | Material: | Aluminum Alloy Frame |
| Warranty: | 1 Year | Size: | 75",55/65/75/86/100inch |
| Brightness: | 400cd/2 | Response Time: | 6ms |
| High Light: | ir interactive whiteboard,interactive whiteboard display |
||
2020 China New Products Full HD Digital Electronic Smart Board Educational Interactive Whiteboard with OPS for e-learnin
| Screen size | 55’’/65’’/75’’/86’’/98’’ |
| CPU | intel i3(intel i5/i7 option) |
| RAM | (8GB/16GB option) |
| Memory | (128GB SSD/256GB SSD option) |
| Windows OS | Windows 10 without license( license option) |
| (Android OS option) | Five nuclear Mali, 450 |
| Android | Android 7.0 |
| Touch Technology | Infrared touch |
| Touch points | 20 points |
| Input way | finger touch,pen,or any opaque object |
| Touch life times | Over 60,000,000 times |
| Touch response speed | 8ms |
| Display Type | DLED |
| Resolution | (3840*2160 UHD option) |
| Brightness | 350(cd/m2) |
| Ratio of display | 16:09 |
| Best viewing angle | up:73 down:73； left:73 right:73 |
| Max. viewing angle | 178° |
| Contrast ratio | 5000:1TYP |
| Glass type | 4mm tempered glass |
| Glass transmittance | 95% |
| Front Buttons: | |
| PC power button*1;Power on/off*1;USB*2 | |
| Front ports: | |
| HDMI*1;Touch out*1;MV in*1 | |
| Back ports(Ⅱ):(Exact ports info. depends on the model of OPS PC) | |
| DC(9V-12V)*1;MIC*1;AUDIO*1;LAN*1;USB3.0*2;USB2.0*2;HDMI*1;VGA*1 | |
| Power of display | 200W |
| Colors | 1.07B(10bit) |
| Life time | 80,000h |
| Working voltage | 60-120HZ 100-250V |
| Standby power | ≤0.5W |
| Working temperature | 0℃~40℃ |
| Storage temperature | -20℃~60℃ |
| Working humidity | 10%~90%RH |
| Power of speaker | 8Ω10W*2 |
| Frame material | Alloy |
| Accessories | Wall bracket/movable floor stand/pen/remote control/WIFI antenna |
| Warranty | 12 months |
| Package | 3cm thickness Honeycomb box |
| SIZE | Display size (inch/mm) |
Overall size/Weight W*D*H(mm)/kg |
Packing size/Weight W*D*H(mm)/kg |
QTY of containers(pcs) 20'GP/40'GP/40'HQ |
| 55" | 1210*680 | 1262*782*85/26 | 1428*220*878/36 | 102/236/254 |
| 65" | 1428*804 | 1489*906*89/37.5 | 1656*204*1050/49.8 | 79/183/197 |
| 75" | 1650*928 | 1710*1029*89/52.3 | 1886*210*1196/66.2 | 59/137/148 |
| 86" | 1895*1066 | 1957*1169*90/69.8 | 2134*210*1334/89.4 | 53/123/133 |
| 98" | 2159*1214 | 2245*1323*90/102 | 2483*376*1493/136 | 20/47/50 |
