Interactive-flatpanel | Floor standing advertising display | Commercial display

|
| Place of Origin: | Guangdong, China |
| Brand Name: | wanbao |
| Certification: | CE , ISO9001 |
| Model Number: | LED46 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiated |
| Packaging Details: | kraft carton |
| Delivery Time: | 8-15 days after payment |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 5000PCS PER MONTH |
| Input: | CVBS,VGA,YPbPr/YCbCr,Y/C | Tube Chip Color: | FULL COLOR |
|---|---|---|---|
| Usage: | Indoor | Resolution: | 1920*1080P |
| Panel Type: | TFT | Response Time: | 6ms |
| Language: | Support Multi-language | Material: | Aluminum |
| High Light: | 1920x1080P Interactive Display Panel,TFT Interactive Display Panel,6ms Interactive Display Panel |
||

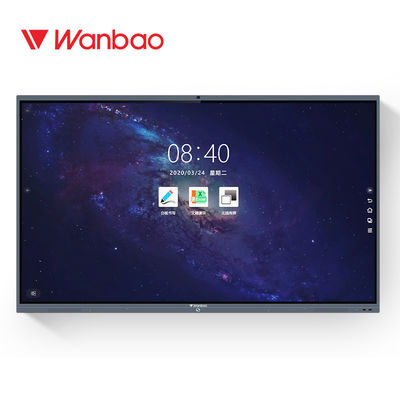

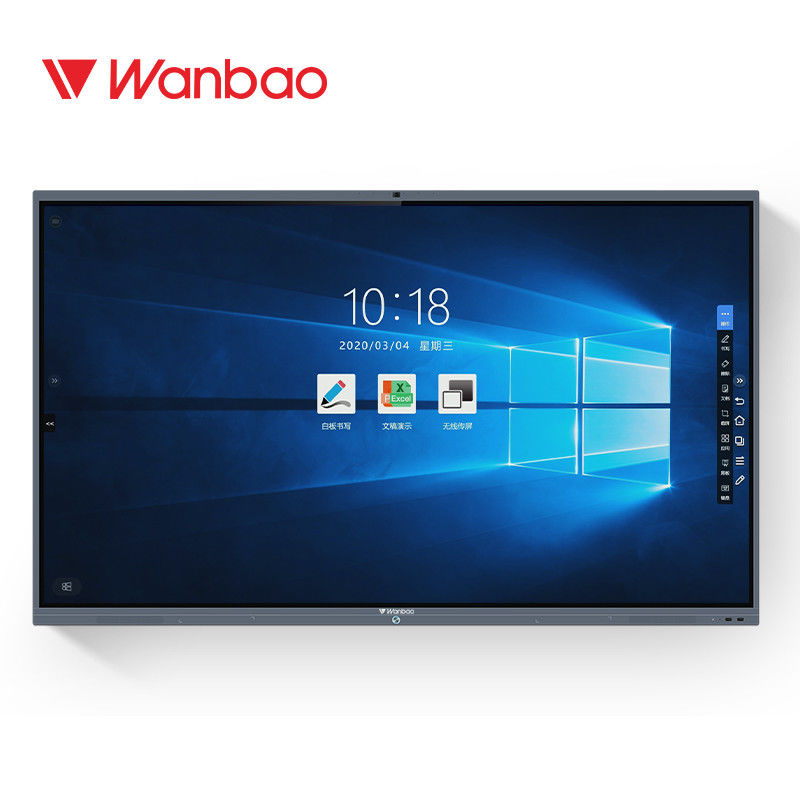

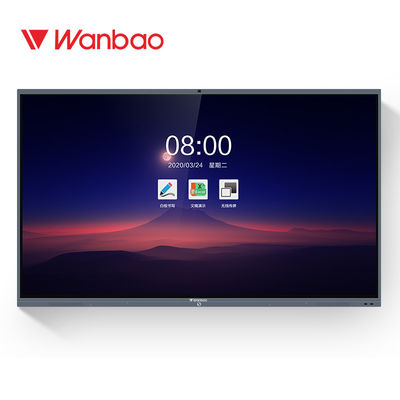

Windows7 / 8 / 10 Android Interactive Display Panel 1920*1080P Build
46 inch lcd display with 1920*1080P / narrow bezel LCD Video wall ,Build-in matrix LCD Monitor
1. Multi-touch function, easy to drag, zoom and rotate the object.
2. Handwriting input function and supporting double pen simultaneous operation.
3. Extensible OPS computer to realize all-in-one function.
4. Intelligent user interface, easy to operate.
5. Multimedia interface, with film, music, pictures and text playback function, support U disk, USB mobile hard disk, MP3, card reader and other USB storage devices.
6. Vivid and simultaneous audio and video effects.
7. Large screen display, with high resolution and excellent color accuracy, can provide dynamic display area, automatically adjust the size.
8. Supporting a variety of computer display formats, and having the function of adaptive display.
9. With smart USB interface, automatic switching between Android and PC.
10. Automatic signal recognition function.
|
Products
|
46 inch
|
49 inch
|
55 inch
|
|
Splicing gap
|
0/1.7/3.5/5.5/8mm
|
||
|
Resolution
|
1920*1080
|
1920*1080
|
1920*1080
|
|
Brightness
|
500 cd/m²
|
700 cd/m²
|
500 cd/m²
|
|
Ratio
|
3500:1
|
3500:1
|
3500:1
|
|
Weight
|
21.5KG
|
23.6KG
|
28.5KG
|
|
Lifespan
|
60000H
|
60000H
|
60000H
|
|
Working temperature
|
0~60℃
|
0~60℃
|
0~60℃
|
|
Power supply
|
100~240V, 50/60Hz
|
100~240V, 50/60Hz
|
100~240V, 50/60Hz
|
|
Rated power consumption
|
210W(MAX:300W)
|
210W(MAX:300W)
|
210W(MAX:300W)
|
|
Working Hour
|
7*24H
|
7*24H
|
7*24H
|
|
Installation
|
Wall mounted type/ cabinet type/ floor standing
|
||
|
Input Interface
|
VGA*1, HDMI*1, DVI*1, BNC*2, IPS*1, RS232*1
|
||
|
Optional
|
Matrix, video processor, video distributor
|
||
|
Operation
|
RS232 Centralized control internet remote control
|
||
|
TV wall resolution
|
1920*1080, 3840*2160, point to point display
|
||
| Screen size | 32’’/42’’/50’’/55’’/60’’/65’’/70’’/75’’/86’’/98’’ |
| CPU | intel i3; (intel i5/i7 option) |
| RAM | 4GB RAM; (8GB/16GB option) |
| Memory | 120GB SSD;(240GB SSD/1TB HDD option) |
| Windows OS | Windows 7/10 without license( license option) |
| (Android OS option) | MSD 648 Quad core |
| Android | Android 6.0 |
| Touch Technology | Infrared touch |
| Touch points | 10/20 points |
| Input way | finger touch,pen,or any opaque object |
| Touch life times | Over 60,000,000 times |
| Touch response speed | 8ms |
| Display Type | LED |
| Resolution | 1920*1080 FHD (3840*2160 UHD option) |
| Brightness | 400(cd/m2) |
| Ratio of display | 16:09 |
| Best viewing angle | up:89 down:89; left:89 right:89 |
| Max. viewing angle | 178° |
| Contrast ratio | 5000:1TYP |
| Glass type | 4mm tempered glass |
| Glass transmittance | 95% |
| Front Buttons: | |
| PC power button*1;Volume up*1;Volume down *1;Memu*1;Power on/off*1 | |
| Front ports: | |
| HDMI*1;Touch out*1;MV in*1;USB2.0*3 | |
| Back ports(Ⅰ): | |
| USB2.0 type B*1;USB2.0*2;HDMI*1;VGA*1 | |
| Back ports(Ⅱ):(Exact ports info. depends on the model of OPS PC) | |
| DC(9V-12V)*1;MIC*1;AUDIO*1;LAN*1;USB3.0*2;USB2.0*2;HDMI*1;VGA*1 | |
| Power of display | 178W |
| Colors | 16.7M |
| Life time | 60,000h |
| Working voltage | 50-60HZ 100-250V |
| Standby power | 3W |
| Working temperature | 0~45℃ |
| Storage temperature | -20℃~60℃ |
| Working humidity | 5%-90% |
| Power of speaker | 8Ω10W*2 |
| Frame material | Alloy |
| Accessories | Wall bracket/movable floor stand/pen/remote control/WIFI antenna |
| Warranty | 12 months |
| Package | 30mm thickness Honeycomb box |
1. Narrow design: the narrowest can reach 5.3mm (55did), and it truly achieves the seamless.
2. Interface type: VGA, DVI and HD connected analog signal and digital high-definition signal
3. Remote control function: by RS232 port and Ethernet connection for remote operation
4. Beautiful wall structure design, be convenient for installation and maintenance
5. Continuous boot for 7 * 24 hours, deserve to trust.
6. Support 365 days non-stop boot, the backlight life is up to 60,000 hours
7. Splicing mode is optional.
8. Support error and compensation function of video wall pictures
9. Modular design according to customer demand (M * N)
10. Diversification of the display mode
11. Excellent display
