75 Inch Smart Interactive Board Wireless Finger Touch Writing For School

75 Inch Smart Interactive Board Wireless Finger Touch Writing For School

75 Inch Smart Interactive Board Wireless Finger Touch Writing For School
75 Inch Smart Interactive Board Wireless Finger Touch Writing For School
75 Inch Smart Interactive Board Wireless Finger Touch Writing For School
Product Details:
Place of Origin: guangzhou
Brand Name: wanbao
Certification: CE , ISO9001
Model Number: LED75H8Q
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: 880
Packaging Details: export carton
Delivery Time: 10-15 working days
Payment Terms: T/T
Supply Ability: 8000set/month
Contact Now
Detailed Product Description
Type: Whiteboard Folded: NO
Resolution: 3840*2160 (4K) Frame: Aluminum Alloy
Warranty: 1 Year System Version: Android 8.0
Camera Pixel: 8M Response Time: 6ms
Packing Dimension: 1890*240*1230MM Product Dimension: 1780*1323*220mm
Writing Method: Pen/finger Touch Operating System:: Android+win7/10 Optional
Panel Type: LCD Touch: 20 Point
High Light:

Wireless Finger Touch Writing Whiteboard

,

75 Inch Finger Touch Writing Whiteboard

,

Aluminum Alloy Body Smart Interactive Board

75 Inch Interactive Board Wireless Finger-Touch Writing Whiteboard Android PC SOP System Smartboards For School






I.Design Features

1. It adopts all-aluminum alloy frame structure, anodized surface technology, ultra-narrow frame, rounded corner design.
2. 4mm anti-glare tempered glass.
3. Support 20 points IR touch writing experience.
4. The OPS host module adopts a pluggable structure design, which is convenient for inspection, maintenance and upgrade.
5. Dual-channel PC/Android shared interface, 1 TOUCH-USB, 1 HDMI interface for users to expand
6. One-key start button: Power, Input, Menu, V+, V-, ECO, Home, and independently configured OPS computer channel switching buttons, easy to understand and operate.
7. Built-in 8 mega pixels camera, six-array microphone, 8m pickup distance.
8. The machine intelligently senses the changes in the ambient light and lighting then automatically adjusts the screen brightness to achieve the best display effect in different lighting environments, effectively protecting the eyesight of teachers and students, and achieving energy-saving effects.
9. Intelligently identify the signal source, and automatically jump into the port channel when the external signal is received.
10. Support the pull-up touch menu at the bottom machine, full-channel annotation, board in board, two-color writing, brightness adjustment, screen shots, and quick whiteboard operations and etc.
11. Smart cloud annotation, QR code scanning and sharing, mobile screen projection, wireless screen, remote meeting, VIP reception and other functions.
12. Laser making logo.



Product Details:

II.Details

75 Inch Smart Interactive Board Wireless Finger Touch Writing For School 0

III. Specification
Screen size 55’’/65’’/75’’/86’’/100‘’/110''
CPU intel i3(intel i5/i7 option)
RAM (8GB/16GB option)
Memory (128GB SSD/256GB SSD option)
Windows OS Windows 10 without license( license option)
(Android OS option) 8th corei5(8400)8G+256G
Android Android 8.0
Touch Technology Infrared touch
Touch points 20 points
Input way finger touch,pen,or any opaque object
Touch life times Over 60,000,000 times
Touch response speed 8ms
Display Type DLED
Resolution (3840*2160 UHD option)
Brightness 350(cd/m2)
Ratio of display 16:09
Best viewing angle up:73 down:73； left:73 right:73
Max. viewing angle 178°
Contrast ratio 5000:1TYP
Glass type 4mm tempered glass
Glass transmittance 95%
Front Buttons:
PC power button*1;Power on/off*1;USB*2
Front ports:
HDMI*1;Touch out*1;MV in*1
Back ports(Ⅱ):(Exact ports info. depends on the model of OPS PC)
DC(9V-12V)*1;MIC*1;AUDIO*1;LAN*1;USB3.0*2;USB2.0*2;HDMI*1;VGA*1
Power of display 200W
Colors 1.07B(10bit)
Life time 80,000h
Working voltage 60-120HZ 100-250V
Standby power ≤0.5W
Working temperature 0℃~40℃
Storage temperature -20℃~60℃
Working humidity 10%~90%RH
Power of speaker 8Ω10W*2
Frame material Alloy

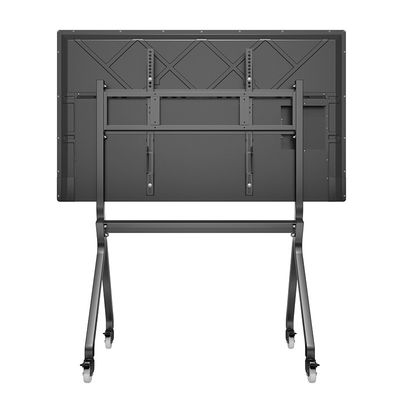

Accessories Wall bracket/movable floor stand/pen/remote control/WIFI antenna
Warranty 12 months
Package 3cm thickness Honeycomb box
The appearance parameter
SIZE Display size
(inch/mm)		 Overall size/Weight
W*D*H(mm)/kg		 Packing size/Weight
W*D*H(mm)/kg		 QTY of containers(pcs)
20'GP/40'GP/40'HQ
55" 1210*680 1262*782*85/26 1428*220*878/36 102/236/254
65" 1428*804 1489*906*89/37.5 1656*204*1050/49.8 79/183/197
75" 1650*928 1710*1029*89/52.3 1886*210*1196/66.2 59/137/148
86" 1895*1066 1957*1169*90/69.8 2134*210*1334/89.4 53/123/133
98" 2159*1214 2245*1323*90/102 2483*376*1493/136 20/47/50



75 Inch Smart Interactive Board Wireless Finger Touch Writing For School 1



75 Inch Smart Interactive Board Wireless Finger Touch Writing For School 275 Inch Smart Interactive Board Wireless Finger Touch Writing For School 3

75 Inch Smart Interactive Board Wireless Finger Touch Writing For School 4

75 Inch Smart Interactive Board Wireless Finger Touch Writing For School 575 Inch Smart Interactive Board Wireless Finger Touch Writing For School 6

75 Inch Smart Interactive Board Wireless Finger Touch Writing For School 775 Inch Smart Interactive Board Wireless Finger Touch Writing For School 8

75 Inch Smart Interactive Board Wireless Finger Touch Writing For School 9

75 Inch Smart Interactive Board Wireless Finger Touch Writing For School 10

75 Inch Smart Interactive Board Wireless Finger Touch Writing For School 11

75 Inch Smart Interactive Board Wireless Finger Touch Writing For School 12

75 Inch Smart Interactive Board Wireless Finger Touch Writing For School 13

75 Inch Smart Interactive Board Wireless Finger Touch Writing For School 1475 Inch Smart Interactive Board Wireless Finger Touch Writing For School 1575 Inch Smart Interactive Board Wireless Finger Touch Writing For School 16
