Interactive-flatpanel | Floor standing advertising display | Commercial display

|
| Place of Origin: | Guangzhou |
| Brand Name: | Wanbao/OEM brand |
| Certification: | CE, ISO9001,ROHS,CCC,ISO14001 |
| Model Number: | LED100H6C |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | 2078 |
| Packaging Details: | export carton |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 13000set/month |
| Type: | Interactive Whiteboard | Resolution: | 3840*2160 (4K) |
|---|---|---|---|
| Frame: | Aluminum Alloy | Warranty: | 1 Year |
| System Version: | Android 11.0 | Response Time: | 6ms |
| Writing Method: | Pen/finger Touch | Operating System:: | Android+win7/10 Optional |
| Panel Type: | LED | Touch: | 20 Point |
| High Light: | Smart Class Interactive Whiteboard,TV Touch Screen Interactive Whiteboard,100'' Interactive Whiteboard |
||

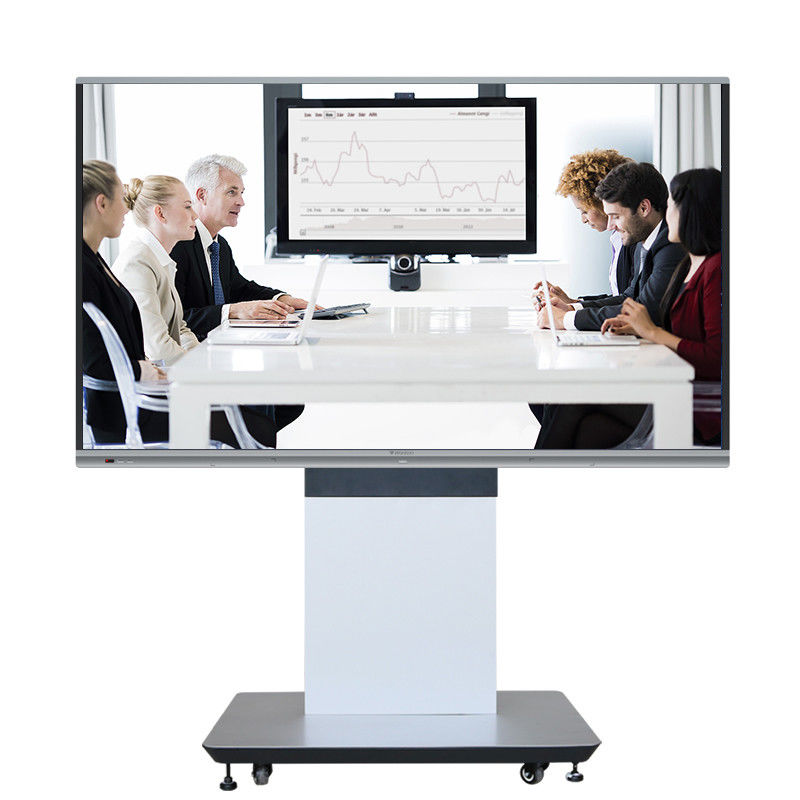

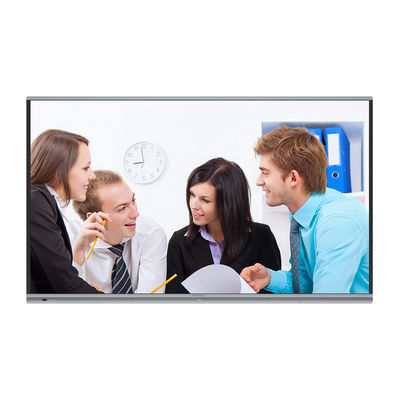

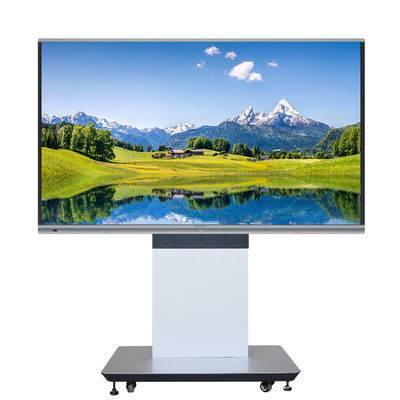

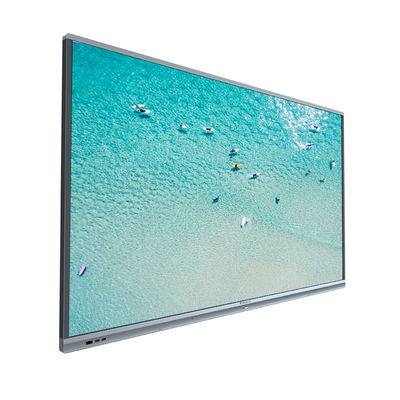

Interactive Whiteboard is an interactive TV, it built-in with LCD/LED and touch screen (and PC for optional). We use the most popular technology infrared touch to achieve interaction between users and the monitor.
All in one touch monitor is also a LCD whiteboard, use the LCD to instead of the projector for image presentation.
Connect with built-in or outer PC, it is a large touch PC, fingers to control and operate the PC to present advertisement, conference PPT, classroom courses, play movies and etc…
Features of All in One Interactive Whiteboard
♦ 20 points IR touch screen
♦ Comes with multi-funtion software
♦ Comes with WIFI
♦ Equiped with multiple signal interfaces
♦ Aluminum alloy body with front access touch frame module
♦ Intelligent black board detecting features (Once black board activated, LED backlit off)
♦ Available in a wide range of sizes: 55", 65", 75", 86" 100" 105'' 110''Inch optional
Product Details:
| Screen size | 55’’/65’’/75’’/86’’/100‘’/110'' |
| CPU | intel i3(intel i5/i7 option) |
| RAM | (8GB/16GB option) |
| Memory | (128GB SSD/256GB SSD option) |
| Windows OS | Windows 10 without license( license option) |
| (Android OS option) | 8th corei5(8400)8G+256G |
| Android | Android 11.0 |
| Touch Technology | Infrared touch |
| Touch points | 20 points |
| Input way | finger touch,pen,or any opaque object |
| Touch life times | Over 60,000,000 times |
| Touch response speed | 8ms |
| Display Type | DLED |
| Resolution | (3840*2160 UHD option) |
| Brightness | 350(cd/m2) |
| Ratio of display | 16:09 |
| Best viewing angle | up:73 down:73； left:73 right:73 |
| Max. viewing angle | 178° |
| Contrast ratio | 5000:1TYP |
| Glass type | 4mm tempered glass |
| Glass transmittance | 95% |
| Front Buttons: | |
| PC power button*1;Power on/off*1;USB*2 | |
| Front ports: | |
| HDMI*1;Touch out*1;MV in*1 | |

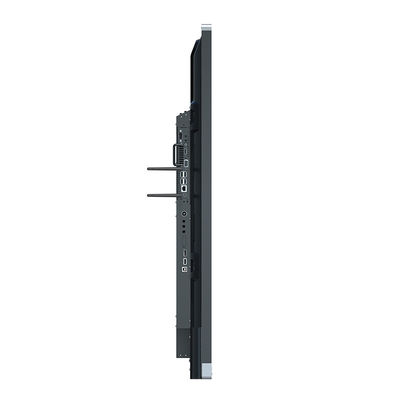

| Back ports(Ⅱ):(Exact ports info. depends on the model of OPS PC) | |
| DC(9V-12V)*1;MIC*1;AUDIO*1;LAN*1;USB3.0*2;USB2.0*2;HDMI*1;VGA*1 | |
| Power of display | 200W |
| Colors | 1.07B(10bit) |
| Life time | 80,000h |
| Working voltage | 60-120HZ 100-250V |
| Standby power | ≤0.5W |
| Working temperature | 0℃~40℃ |
| Storage temperature | -20℃~60℃ |
| Working humidity | 10%~90%RH |
| Power of speaker | 8Ω10W*2 |
| Frame material | Alloy |
| Accessories | Wall bracket/movable floor stand/pen/remote control/WIFI antenna |
| Warranty | 12 months |
| Package | 3cm thickness Honeycomb box |
| SIZE | Display size (inch/mm) |
Overall size/Weight W*D*H(mm)/kg |
Packing size/Weight W*D*H(mm)/kg |
QTY of containers(pcs) 20'GP/40'GP/40'HQ |
| 55" | 1210*680 | 1262*782*85/26 | 1428*220*878/36 | 102/236/254 |
| 65" | 1428*804 | 1489*906*89/37.5 | 1656*204*1050/49.8 | 79/183/197 |
| 75" | 1650*928 | 1710*1029*89/52.3 | 1886*210*1196/66.2 | 59/137/148 |
| 86" | 1895*1066 | 1957*1169*90/69.8 | 2134*210*1334/89.4 | 53/123/133 |
| 98" | 2159*1214 | 2245*1323*90/102 | 2483*376*1493/136 | 20/47/50 |
