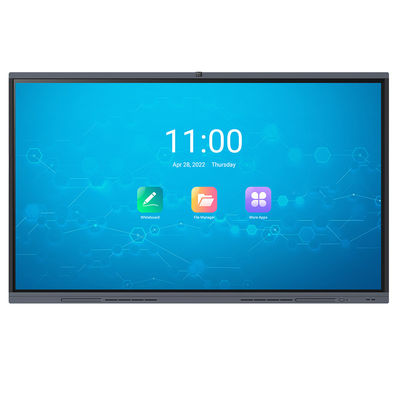

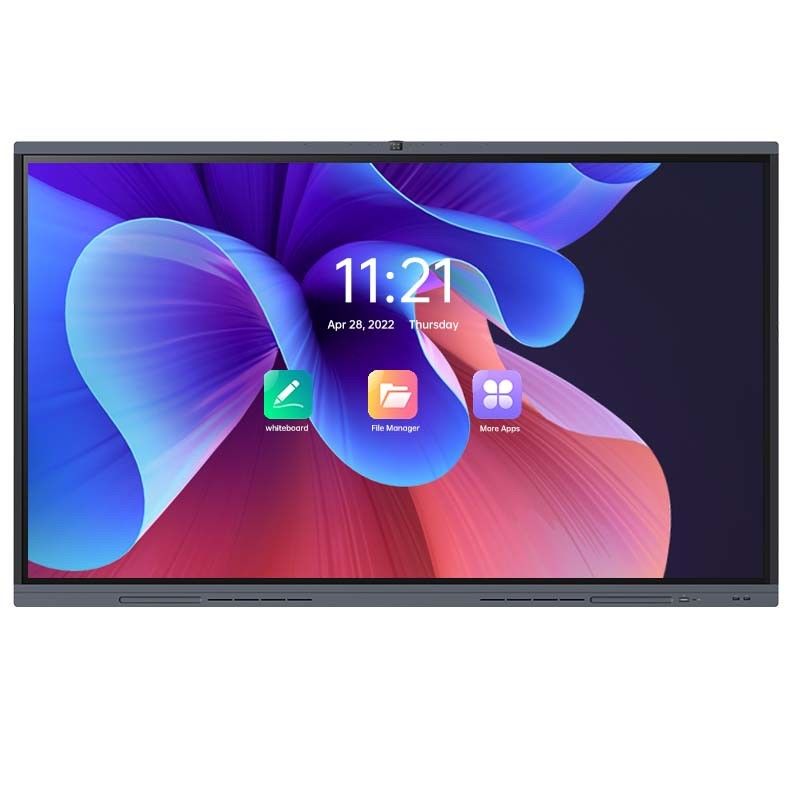

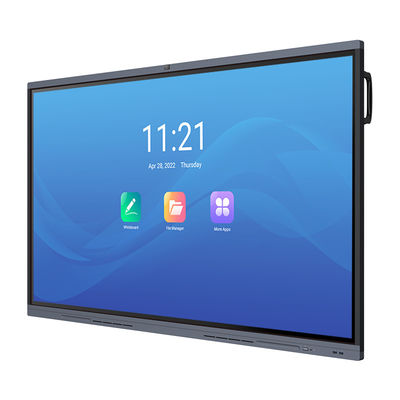

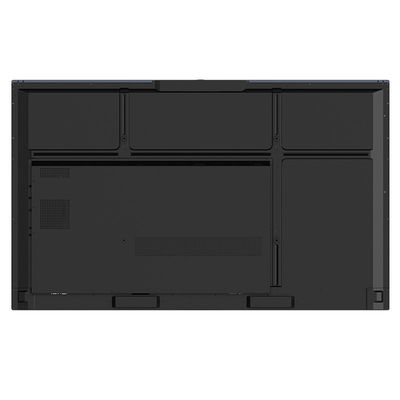

H11S 65 Inch 4K UHD Smart Board Interactive Whiteboard For Conference

H11S 65 Inch 4K UHD Smart Board Interactive Whiteboard For Conference

H11S 65 Inch 4K UHD Smart Board Interactive Whiteboard For Conference
H11S 65 Inch 4K UHD Smart Board Interactive Whiteboard For Conference
H11S 65 Inch 4K UHD Smart Board Interactive Whiteboard For Conference
Product Details:
Place of Origin: Guangzhou
Brand Name: Wanbao/OEM brand/Neutral
Certification: CE, ISO9001,ROHS,CCC,ISO14001
Model Number: LED65H11S
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: USD418-989
Packaging Details: export carton
Delivery Time: 10-15 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 9000set/month
Contact Now
Detailed Product Description
Type: Interactive Whiteboard Resolution: 3840*2160 (4K)
Frame: Aluminum Alloy Warranty: 1 Year
System Version: Android 9.0 Camera Pixel: 12MP
Response Time: 6ms Packing Dimension: 1953*1152*88
Product Dimension: 2120*1310*280 Writing Method: Pen/finger Touch
Operating System:: Android+win7/10 Optional Panel Type: LED
Touch: 20 Point
High Light:

4K UHD Smart Board Interactive Whiteboard

,

65 Inch Smart Board Interactive Whiteboard

,

Conference Smart Board Interactive Whiteboard



New Design H11S 65 Inch 4K UHD Smart Board Interactive Whiteboard For Conference
Top Picks H11S 65 Inch Smart Board Interactive Whiteboard AG Interactive Board 20 Points

Design Features

Eight Machines In One

Wanbao Conference Flat Panel integrates the functions of eight devices in one: projector, curtain, electronic whiteboard, TV,computer, tablet, set top box and audio.



Dual Systems

Android+Windows dual systems, one-key switch, strong compatibility, various software can be installed and meets the requirements of the office, teaching,training, display, etc.,with a wider range of applications;



Writing Whiteboard

20-point touch, high-precision writing with 1mm original handwriting, supports single-point and multi-point writing switching, zoom and roaming. Supports document, PDF, JPG and other formats to save files, the meeting content can be scanned and saved for easy sharing;



Wireless Projection

Mobile phone and tablet 5G ultra-fast screen transfer, it needs to download the screen sharing software in Android end, for IOS end, directly transmits the screen through AIR PLAY mirroring; laptop wireless screen mirroring, two-way operation, it needs to be equipped with a wireless screen mirroring device, allows 4 devices cast screens simultaneously.



Teleconferencing

Install remote video conferencing software, with camera and microphone, you can achieve remote video conferencing;

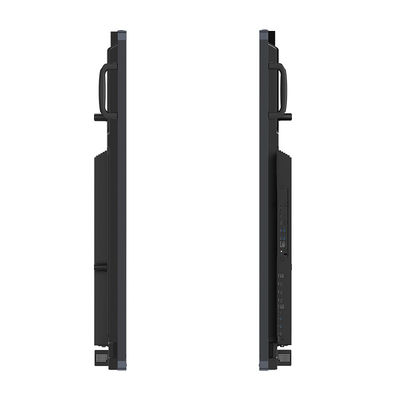

Exterior Design

Ultra-narrow two-color splicing frame design, anodized wire drawing process, convenient design of front USB port.



Full Channel Annotation

Supports quick setting of the pen color, annotating multiple pages, previewing the annotated pages at any time, and the annotated pages can be quickly imported into whiteboard software;



VIP Reception

Create a welcome ceremony for every visitor at zero cost. Built-in welcome template applications for more than ten industries such as enterprise, government, medical,education, advertising, etc., and supports multi-person signing, saving, scanning code sharing;



One-Button Start

All-in-one power button, supports two-in-one, three-in-one and other setting modes (to achieve energy saving, switch OPS computer,switch in one Machine function)


Anti-glare inside
Watching in the sun, the screen content is still clearly visible, without missing any details;

Built-in Camera 1200W, Microphone 8 Array.
Screen parameters
Glass specifications
A grade
Size
55"
65"
75"
86"
Type
ADS
Response time
8 ms
Display ratio
16:9
Display size (mm)
1210×680
1428×804
1649x928
1895×1066
Resolution
3840(H)×2160(V)
Pixel pitch (mm)
0.372×0.372
0.372×0.372
0.429x0.429
0.4935×0. 4935
Refresh rate
60Hz
60Hz
60Hz
60Hz
Color brightness
1.07B(10bit)
Color gamut
72%
Contrast ratio
5000:1
Viewing angle
178°(H/V)
Backlight
DLED
Screen brightness
260cd/m2
260cd/m2
350cd/m2
400cd/m2
Life time
≥30000h
Touch writing system
Principle of Recognition
Infrared recognition
Touch points
20 touch
Smallest identifier
3mm
Input method
Fingers, touch pens and other opaque objects
Response time
<15 ms
Touch accuracy
±1mm (more than 90% touch area)
Writing height
3mm
Output coordinates
32767 (W) ×32767(D)
Surface hardness of writing screen
7H
Built-in system
Motherboard solution
9950 Chip
System version
Android 9.0
CPU
A73×4
GPU
G52MC2
RAM
8GB
ROM
64GB
Interface
HDMI in
3
USB 3.0
4
VGA Audio in
1
Touch USB
2
VGA IN
1
USB 2.0
1
EARPHONE
1
Type-C
1
SPDIF OUT FDDI
1
HDMI Out
1(Optional)
RS232
1
RJ45
2 (IN/OUT)
Wifi
Version
802.11 a/b/g/n/ac
Operating frequency
2.4GHz/5GHz
Operating distance
0~12m
Power
Size
55"
65"
75"
86"
Power input 100-240V~50/60Hz
2A
2.5A
3.0A
5A
Power consumption
118W
400W
500W
600W
Standby power consumption
≤0.5W
Environmental factory
Operating Temperature
0℃~40℃
Operating humidity
10%~90%RH
Storage temperature
-20℃~60℃
Storage humidity
10%~90%RH
Altitude
≤5000m
PC system (optional)
PC Model
I3/I5/I7
PC Type
Ultra-thin pluggable Intel Core series modular computer
CPU Configuration 1
8th i3,RAM 8GB,M.2 solid state drive 256GB (SSD)
Configuration 2
8th i5,RAM 8GB,M.2 solid state drive 256GB (SSD)
Configuration 3
8th i7,RAM 8GB,M.2 solid state drive 256GB (SSD)
Graphics
Integrated Intel® HD Graphics
Sound card
Integrated HD stereo sound card
Built-in system
Windows 7/10 Enterprise Edition
Size
55"
65"
75"
86"
Display size (inch/mm)
1210×680
1428×804
1650×928
1895×1066
Overall size/Weight W×D×H(mm)/kg
1258×744×80
/23
1488.4×896.7×86.3
/40.8
1710×1020×86.3
/52.2
1957×1159.8×86.3
/65.75
Packing size/Weight W×D×H(mm)/kg
1360×165×885
/27
1595×205×912
/48.9
1886×210×1196
/64.7
2115×265×1290
/80.7
QTY of containers(pcs) 20'GP/40'GP/40'HQ
102/236/254
79/183/197
59/137/148
53/123/133
Product Description
H11S 65 Inch 4K UHD Smart Board Interactive Whiteboard For Conference 0
H11S 65 Inch 4K UHD Smart Board Interactive Whiteboard For Conference 1
H11S 65 Inch 4K UHD Smart Board Interactive Whiteboard For Conference 2
H11S 65 Inch 4K UHD Smart Board Interactive Whiteboard For Conference 3
H11S 65 Inch 4K UHD Smart Board Interactive Whiteboard For Conference 4
H11S 65 Inch 4K UHD Smart Board Interactive Whiteboard For Conference 5
H11S 65 Inch 4K UHD Smart Board Interactive Whiteboard For Conference 6
H11S 65 Inch 4K UHD Smart Board Interactive Whiteboard For Conference 7
H11S 65 Inch 4K UHD Smart Board Interactive Whiteboard For Conference 8
